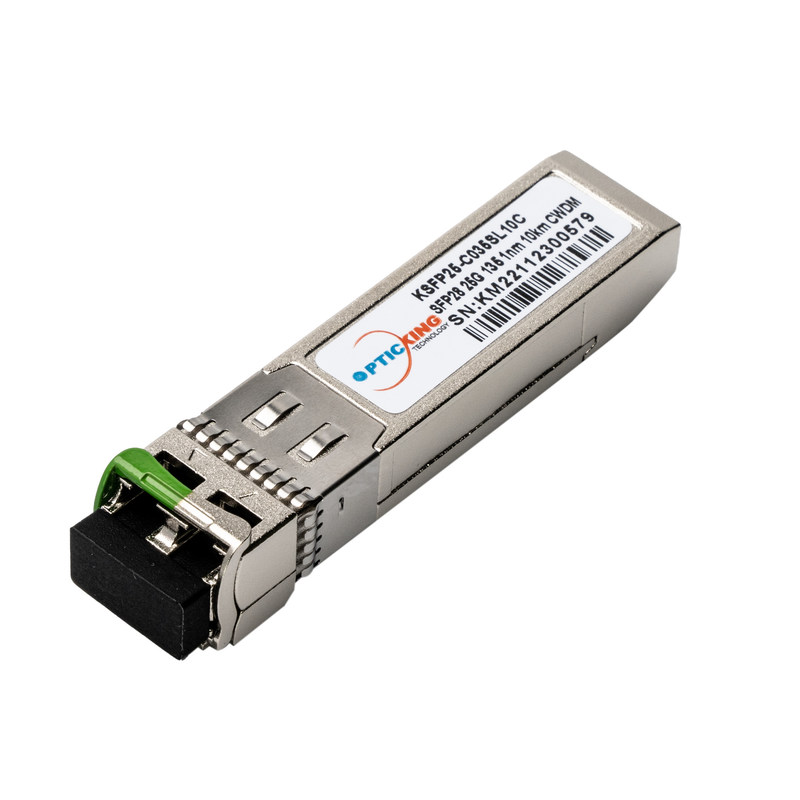

TUV UL 1351nm 25G SFP28 CWDM 25GBASE SFP LC Module
What is 25G CWDM SFP28 optical transceiver?
This 25G CWDM SFP28 transceiver is compatible with Cisco SFP-25G-CWDM module.It is designed for use with Cisco 25 Gigabit Ethernet connectivity and CPRI 10 applications.This 25G CWDM transceiver is programmed and tested to perform identical to original Cisco 25GBASE-CWDM SFP28 transceiverbut with much lower pricing. This 25G CWDM SFP28 module features a highly reliable CWDM DFB transmitter and PIN photo-detector into duplex LC optical connector,supporting links up to 10km over single mode fiber.
Product Features
- Hot-pluggable SFP28 form factor
- Supports 25.78125Gb/s data rate
- Internal CDR on both transmitter and receiver channel
- Duplex LC receptacles
- Built-in digital diagnostic functions
- Operating case temperature range: X means C( 0~70°C) ; I(-40~85°C).
- Single 3.3V power supply
- RoHS 6 compliant (lead free)
Applications
- 25G Ethernet
- Data center and Fiber channel
Ordering Information
| Product Number |
Wavelength |
Data rate |
Distance |
TX Power |
RX Sens |
LD |
PD |
DDM |
| KSFP25-C035SL10X |
1351 |
25.78Gb/s |
10KM |
0~6dBm |
<-14dBm |
DFB |
PIN |
YES |
