Home > Products > Optical Transceiver Modules >

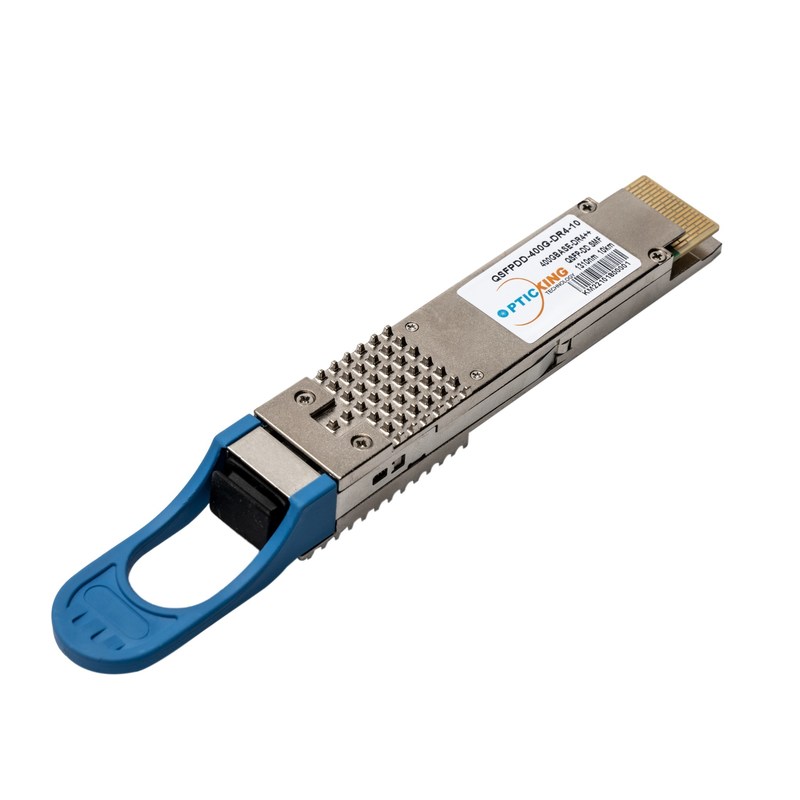

SM Fiber DR4 400G QSFP DD Transceiver 10km 1310nm Optical Module

SM Fiber DR4 400G QSFP DD Transceiver 10km 1310nm Optical Module

SM Fiber DR4 400G QSFP DD Transceiver 10km 1310nm Optical Module
  • SM Fiber DR4 400G QSFP DD Transceiver 10km 1310nm Optical Module

SM Fiber DR4 400G QSFP DD Transceiver 10km 1310nm Optical Module

MOQ: 1
Standard Packaging: plastic bag
Delivery Period: Within 1-8 working days after PO confirmed
Supply Capacity: 15000Piece/Pieces per Month
Detail Information
Place of Origin:
China
Brand Name:
OPTICKING
Certification:
CE/FCC/RoHS/TUV/UL
Model Number:
KQSFC0-DR31SM10C
Supply Voltage:
3.3V
Power:
-1.9~4.8dBm
Data Rate:
400G
Wavelength:
1310nm
Transmission:
10km
Fiber Type:
SM
DDM:
Yes
Minimum Order Quantity:
1
Packaging Details:
plastic bag
Delivery Time:
Within 1-8 working days after PO confirmed
Supply Ability:
15000Piece/Pieces per Month
High Light:
Fiber Optic Transceiver, QSFP-DD Transceiver Module
Product Description

400G QSFP DD DR4 Transceiver 10km 1310nm Optical Module





Product Feature



1.   Compliant with IEEE802.3bs standard:

      400GAUI-8 electrical interface
2.   Compliant with IEEE 802.3cu standards:
      4x 100GBASE-LR1 optical interface
3.   Compliant with QSFP-DD MSA HW Rev 5.1
4.   Type 2 housing with MPO-12 connector
5.   Compliant with QSFP-DD CMIS Rev 4.0
6.   Maximum power consumption 10W
7.   Case operating temperature 0°C to 70°C
8.   Two wire serial Interface with digital diagnostic monitoring
9.   Complies with EU Directive 2011/65/EU(RoHS compliant)
10. Class 1 Laser


Applications

  • Data Center Interconnect

  • 400GEthernet



Ordering Information

Product Number

Wavelength

Data rate

Distance

TX Power

RX Sens

LD

PD

DDM

KQSFC0-DR31SM10C

1310nm

400Gb/s

10km

-1.9~4.8dBm

<-8.2dBm

EML

PIN



YES
