Home > Products > Optical Transceiver Modules >

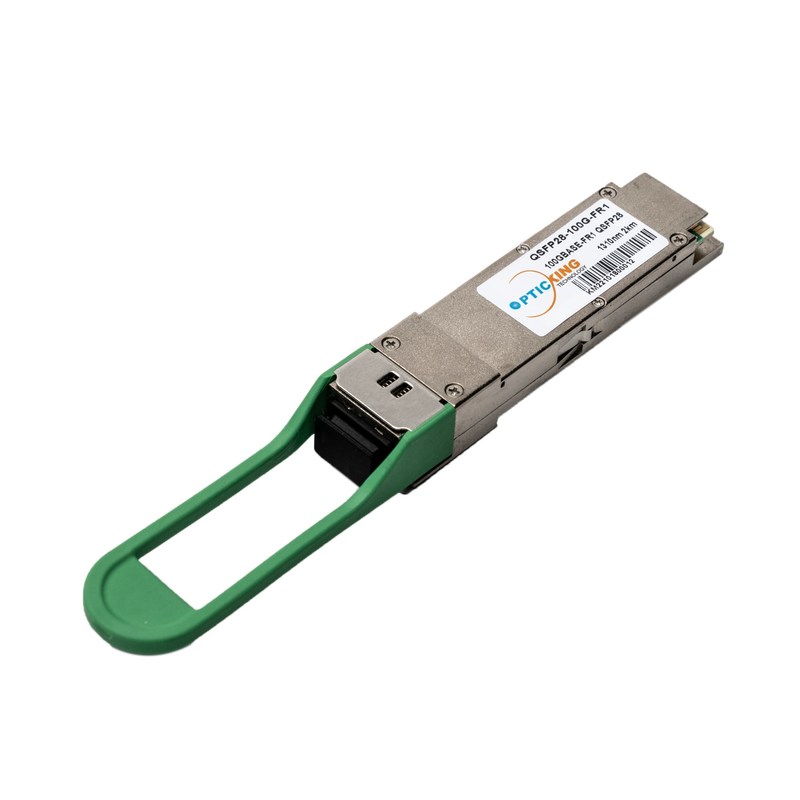

SM Fiber 100G QSFP28 2km Optical FR1 Transceiver Module

SM Fiber 100G QSFP28 2km Optical FR1 Transceiver Module

SM Fiber 100G QSFP28 2km Optical FR1 Transceiver Module
  • SM Fiber 100G QSFP28 2km Optical FR1 Transceiver Module

SM Fiber 100G QSFP28 2km Optical FR1 Transceiver Module

MOQ: 1000
Standard Packaging: plastic bag
Delivery Period: Within 1-8 working days after PO confirmed
Supply Capacity: 15000Piece/Pieces per Month
Detail Information
Place of Origin:
China
Brand Name:
OPTICKING
Certification:
CE/FCC/RoHS/TUV/UL
Model Number:
KQSF0A-FR31SL00C
Supply Voltage:
3.3V
Power:
-3.1~4dBm
Data Rate:
100G
Wavelength:
1310nm
Transmission:
2km
Fiber Type:
SM
DDM:
Yes
Minimum Order Quantity:
1000
Packaging Details:
plastic bag
Delivery Time:
Within 1-8 working days after PO confirmed
Supply Ability:
15000Piece/Pieces per Month
High Light:
Fiber Optic Transceiver, QSFP28 Transceiver Module
Product Description

SM Fiber 100G QSFP28 2km Optical FR1 Transceiver Module



Optical QSFP28 100G FR1 Transceiver 2km 1310nm Optical Module



Product Feature



1.   Compliant with QSFP28 Standard: SFF-8636 Rev 2.10a
2.   Compliant with IEEE802.3cu D3.2 100GBASE- FR1
3.   High speed I/O electrical interface (CAUI-4)
4.   Single 3.3V Supply Voltage
5.   Maximum power consumption 4W
6.   0-70 ºC Case Operating Temperature
7.   1311nm EML laser and PIN Receiver
8.   Hermetically sealed TO Based design
9.   QSFP28 MSA package with duplex LC connector
10. Two Wire Serial Interface with Digital Diagnostic Monitoring
11. KP4 FEC termination inside module
12. Supporting 2km reach of single mode fiber
13. Complies with EU Directive 2011/65/EU (RoHS compliant)
14. Class 1 Laser


Applications

  • Data Center Interconnect
  • 100G Ethernet



Ordering Information

Product Number Wavelength Data rate Distance TX Power RX Sens LD PD DDM
KQSF0A-DR31SL00C 1310nm 100Gb/s 2km -3.1~4dBm <-7.1dBm EML PIN



YES
