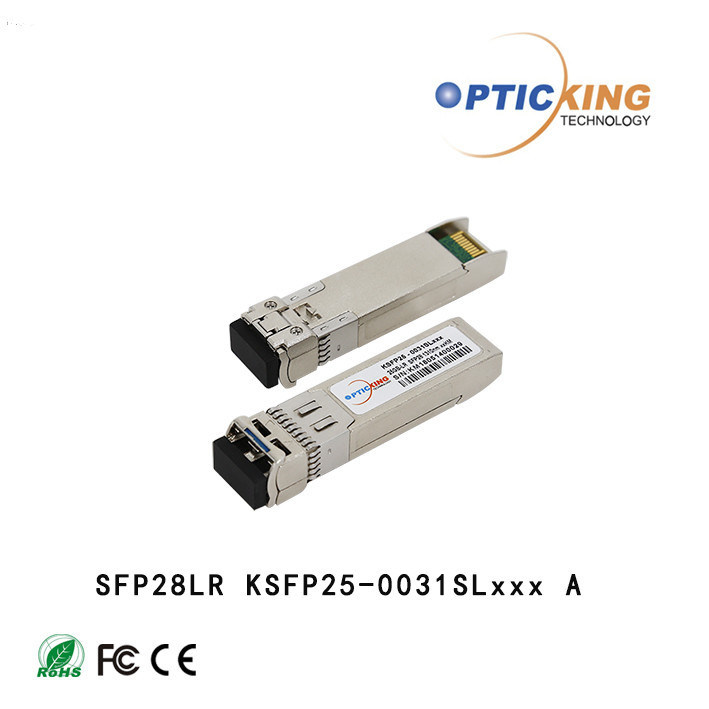

Single Mode 25G SFP28 LR 1310nm 10KM SFP Duplex LC Optical Transceiver
25G SFP28 LR 1310nm 10KM LC Optical Transceiver
Competitive advantage
1. Excellent quality and more than 3 years warranty
2. Competitive pricing
3. Full compatible (100% HP/Extreme/Juniper/H3C)
4. OEM/ODM Customized label
5. Keep stock,Fast delivery
6. R&D team engineers major in the structure design, circuit design,solution management,compatibility testing .
Features
- Up to 25.78 Gb/s bi-directional data links
- Hot-pluggable SFP+ footprint
- Up to 10km on 9/125mm SMF
- Built-in digital diagnostic functions
- 1310nm DFB laser transmitter
- Duplex LC connector
- Metal enclosure, for lower EMI
- RoHS compliant
- 1.5W maximum power consumption with established link
- Specifications compliant with SFF 8472
- Single 3.3V power supply
- Case operating temperature
Commercial: 0°C to +70°C
Extended: -10°C to +80°C
Industrial: -40°C to +85°C
Applications
- 25G Ethernet
- eCPRI & CPRI
Specifications
| Product Number |
Wavelength |
Data rate |
Distance |
TX Power |
RX Sens |
LD |
PD |
DDM |
|
KSFP25-0031SL03X
|
1310nm |
25.78Gb/s |
10kM |
-7~2 dBm |
<-10.5dBm |
DFB |
PIN |
YES |
Compatible
HW, HP, Cisco, H3C, Generic, ZTE, Arista, Dell, etc. ...
Mechanical Specifications
