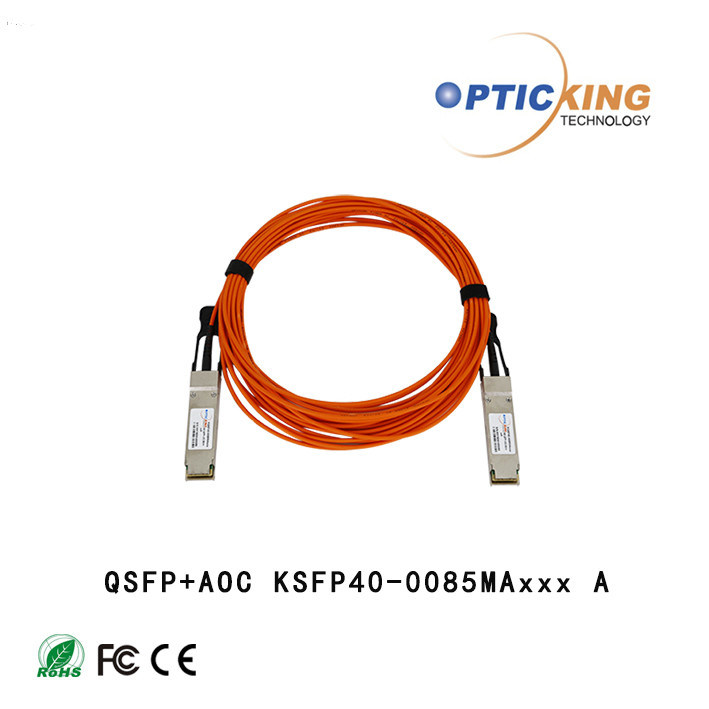

40G QSFP+ AOC Active Optical Cable for Data Center High Speed Network
40G QSFP+ Active Optical Cable (AOC) is a 4-channel parallel active optical cable(AOC) for storage, data center, and high performance computing connectivity. It offers 4 independent data transmission channels and 4 data receiving channels via the multimode fibers. An aggregate data rate of 40 Gbps over 100 meters transmission can be achieved by this product.
Product Features
- Hot pluggable
- Full duplex x4 channel 850nm parallel active optical cable
- SFF-8436 QSFP+ compliant
- Differential AC-coupled high speed data interface
- 4 channels 850nm VCSEL array
- 4 channels 850nm PD array
- Maximum link length of 100m on OM3 multimode Fiber(MMF)
- 4 Low power consumption <1.5W
- 3.3V power supply voltage
- RoHS-6 compliant
Applications
- Infiniband transmission at 4ch SDR, DDR and QDR
- 40GBASE-SR4 40G Ethernet
- Data centers
Ordering Information
| ProductNumber |
Wavelength |
Data rate |
Distance |
connector |
ICC |
Bit Error Rate(<10^-5) |
LD |
PD |
DDM |
| KQSF400085MAXXX |
850nm |
40Gb/s |
XX |
AOC |
480mA |
<-5.4dbm |
VCSEL |
PIN |
YES |
Notes:
Distance xx means:transmission distance of fiber
