Home > Products > Optical Transceiver Modules >

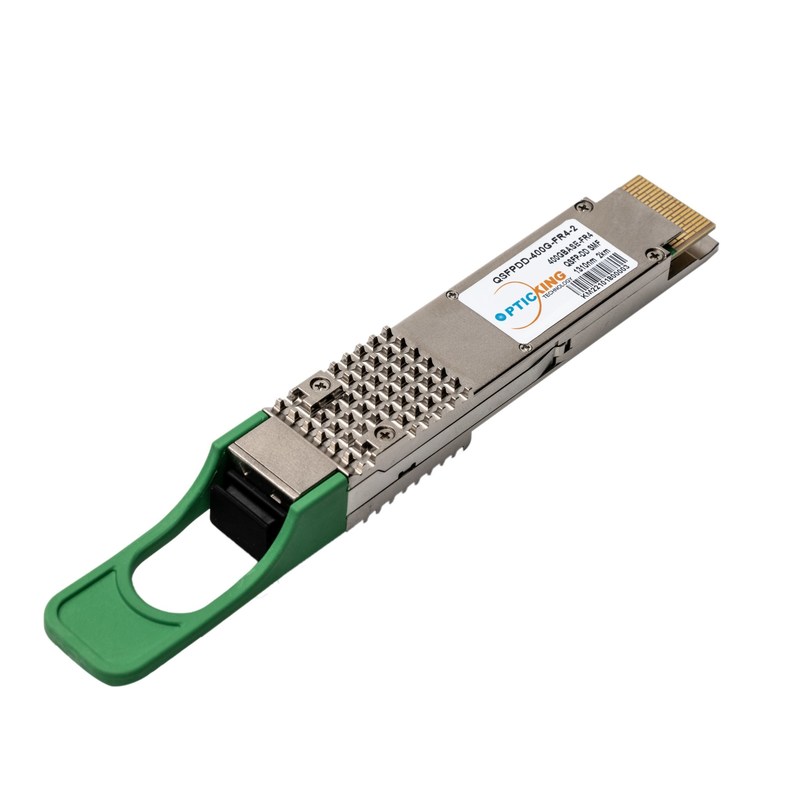

Optical DDM FR4 400G QSFP DD Transceiver 2km QSFP CWDM4 SM Fiber

Optical DDM FR4 400G QSFP DD Transceiver 2km QSFP CWDM4 SM Fiber

Optical DDM FR4 400G QSFP DD Transceiver 2km QSFP CWDM4 SM Fiber
  • Optical DDM FR4 400G QSFP DD Transceiver 2km QSFP CWDM4 SM Fiber

Optical DDM FR4 400G QSFP DD Transceiver 2km QSFP CWDM4 SM Fiber

MOQ: 1000
Standard Packaging: plastic bag
Delivery Period: Within 1-8 working days after PO confirmed
Supply Capacity: 15000Piece/Pieces per Month
Detail Information
Place of Origin:
China
Brand Name:
OPTICKING
Certification:
CE/FCC/RoHS/TUV/UL
Model Number:
KQSFC0-F431SL00C
Supply Voltage:
3.3V
Power:
-3.3~3.5dBm
Data Rate:
400G
Wavelength:
CWDM4
Transmission:
2km
Fiber Type:
SM
DDM:
Yes
Minimum Order Quantity:
1000
Packaging Details:
plastic bag
Delivery Time:
Within 1-8 working days after PO confirmed
Supply Ability:
15000Piece/Pieces per Month
High Light:
Fiber Optic Transceiver, QSFP-DD Transceiver Module
Product Description

Optical DDM 400G QSFP DD FR4 Transceiver 2km QSFP CWDM4 SM Fiber



Optical QSFPDD 400G FR4 Transceiver 2km CWDM4 Optical Module



Product Feature



1.   Compliant with 400G-FR4 Technical Specification rev 2.0

      (100G Lambda MSA) and400GBASE-FR4(IEEE802.3cu)
2.   Compliant with IEEE 802.3bs standard: 400GAUI-8 electrical interface
3.   Compliant with QSFP-DD MSA HW Rev 5.1;
4.   type 2 housing with duplex LC connector
5.   Compliant with QSFP-DD CMIS Rev 4.0
6.   Maximum power consumption 12 W
7.   Case operating temperature 0°C to 70°C
8.   Two wire serial Interface with digital diagnostic monitoring
9.   Complies with EU Directive 2011/65/EU(RoHS compliant)
10. Class 1 Laser


Applications

  • Data Center Interconnect
  • 400GEthernet



Ordering Information

Product Number Wavelength Data rate Distance TX Power RX Sens LD PD DDM
KQSFC0-F431SL00C CWDM4 400Gb/s 2km -3.3~3.5dBm <-7.3dBm DML PIN



YES
