Home > Products > Optical Transceiver Modules >

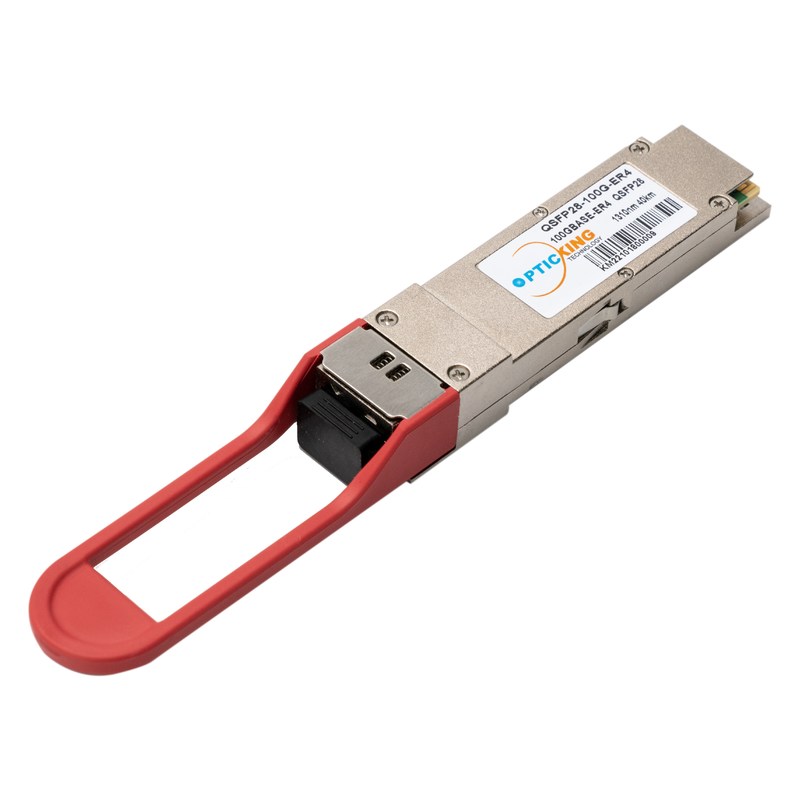

Optical 100G QSFP28 ER4 Transceiver 40km 1310nm LWDM Wavelength

Optical 100G QSFP28 ER4 Transceiver 40km 1310nm LWDM Wavelength

Optical 100G QSFP28 ER4 Transceiver 40km 1310nm LWDM Wavelength
  • Optical 100G QSFP28 ER4 Transceiver 40km 1310nm LWDM Wavelength

Optical 100G QSFP28 ER4 Transceiver 40km 1310nm LWDM Wavelength

MOQ: 1000
Standard Packaging: plastic bag
Delivery Period: Within 1-8 working days after PO confirmed
Supply Capacity: 15000Piece/Pieces per Month
Detail Information
Place of Origin:
China
Brand Name:
OPTICKING
Certification:
CE/FCC/RoHS/TUV/UL
Model Number:
KQSF0A-E031SL40C
Supply Voltage:
3.3V
Power:
-2.5~6.5dBm
Data Rate:
100G
Wavelength:
LWDM
Transmission Distance:
40km
Fiber Type:
SM
DDM:
Yes
Minimum Order Quantity:
1000
Packaging Details:
plastic bag
Delivery Time:
Within 1-8 working days after PO confirmed
Supply Ability:
15000Piece/Pieces per Month
High Light:
Fiber Optic Transceiver, QSFP28 Transceiver Module
Product Description

Optical 100G QSFP28 ER4 Transceiver 40km 1310nm LWDM Wavelength



Optical QSFP28 100G ER4 Transceiver 40km 1310nm Optical Module



Product Feature



1.   Compliant with QSFP28 Standard:
      SFF-8665 Revision 1.9, SFF-8636 Revision 2.6
2.   Compliant with 100G 4WDM-40 MSA technical specification rev 1.0
3.   High speed I/O electrical interface (CAUI-4) compliant with IEEE 802.3bm
4.   Single 3.3V Supply Voltage
5.   Maximum power consumption 4.5W
6.   0-70 ºC Case Operating Temperature
7.   LAN WDM EML laser and APD Receiver
8.   QSFP28 MSA package with duplex LC connector
9.   Two Wire Serial Interface with Digital Diagnostic Monitoring
10. Complies with EU Directive 2011/65/EU (RoHS compliant)
11. Class 1 Laser



Applications

  • Data Center Interconnect
  • 100G Ethernet



Ordering Information

Product Number Wavelength Data rate Distance TX Power RX Sens LD PD DDM
KQSF0A-E031SL40C LWDM 100Gb/s 40km -2.5~6.5dBm <-18.5dBm EML APD



YES
