Home > Products > Optical Transceiver Modules >
Data Center 100G QSFP28 LR4 1310nm 10km LC Module LR4 100G

Data Center 100G QSFP28 LR4 1310nm 10km LC Module LR4 100G

Data Center 100G QSFP28 LR4 1310nm 10km LC Module LR4 100G
  • Data Center 100G QSFP28 LR4 1310nm 10km LC Module LR4 100G
  • Data Center 100G QSFP28 LR4 1310nm 10km LC Module LR4 100G
  • Data Center 100G QSFP28 LR4 1310nm 10km LC Module LR4 100G

Data Center 100G QSFP28 LR4 1310nm 10km LC Module LR4 100G

MOQ: 5
Standard Packaging: plastic bag
Delivery Period: Within 1-8 working days after PO confirmed
Supply Capacity: 15000Piece/Pieces per Month
Detail Information
Place of Origin:
China
Brand Name:
OPTICKING
Certification:
CE/FCC/RoHS/TUV/UL
Model Number:
KQSF0A-L031SL10X
Product Name:
QSFP28 LR4 Optical Transceiver
Supply Voltage:
3.3V
Power:
-4.3~4.5dBm
Data Rate:
100G
Wavelength:
Lwdm
Transmission Distance:
10km
Fiber Type:
SM
DDM:
Yes
Minimum Order Quantity:
5
Packaging Details:
plastic bag
Delivery Time:
Within 1-8 working days after PO confirmed
Supply Ability:
15000Piece/Pieces per Month
High Light:
Fiber Optic Transceiver, QSFP28 Transceiver Module
Product Description

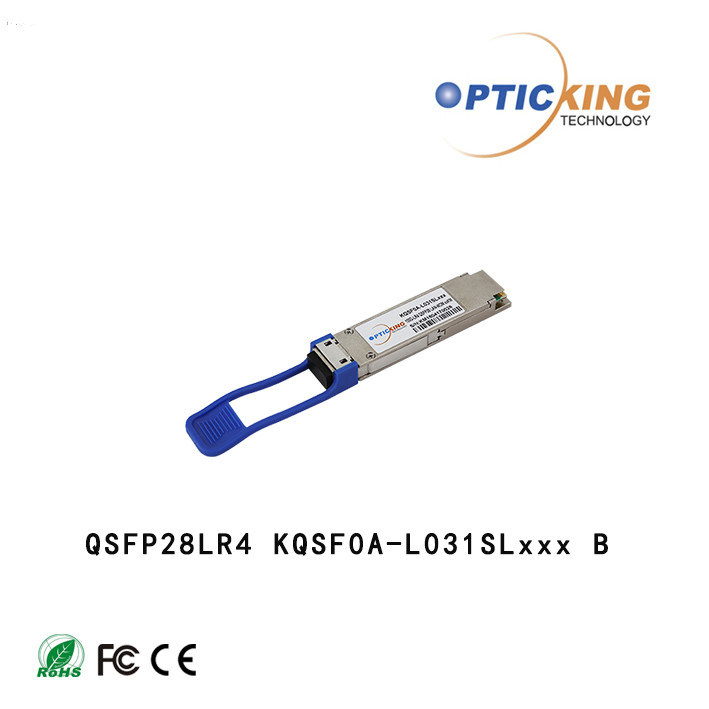

100G QSFP28 LR4 10km 1310nm Optical Module

The QSFP28 module provides 100GBase-LR4 throughput up to 10km over a standard pair of single mode fiber (SMF) with duplex LC connectors. It is easy to install, hot swappable transceiver is suitable to be used in various applications, such as 100G telecom connections, data center, high-performance computing networks, enterprise core and distribution layers, campus networks etc.



Product Features

  1. Hot-pluggable QSFP28 form factor
  2. 4 channels full-duplex transceiver module
  3. Supports 103.125Gb/s aggregate bit rate
  4. 4 channels transmitter
  5. Internal CDR circuits on both receiver and transmitter channels
  6. Support CDR bypass
  7. Built-in digital diagnostic functions
  8. Operating case temperature range: 0 to 70°C
  9. Single 3.3V power supply
  10. RoHS-6 compliant (lead free)

Applications

  1. 100G Ethernet
  2. InfiniBand DDR

Ordering Information

Product Number Wavelength Data rate Distance TX Power RX Sens LD PD DDM
KQSF0A0085MM01X(SR4) 850nm 100Gb/s 100M -8.4~2.4dBm <-5.2dBm VCSEL PIN YES
KQSF0AL031SL10X(LR4) LAN WDM(note2) 100Gb/s 10KM -4.3~4.5dBm <-10.6dBm DFB PIN YES
KQSF0AL031SL10X(LR4) LAN WDM(note2) 100Gb/s 10KM -4.3~4.5dBm <-10.6dBm DFB PIN YES
KQSF0AC027SL00X(CWDM4) CWDM(note1) 100Gb/s 10KM -6.5~2.5dBm <-10.0dBm DFB PIN YES
KQSF0A0031SM00X(PSM4) 1310nm 100Gb/s 2KM -4.3~4.5dBm <-10.6dBm DFB PIN YES
