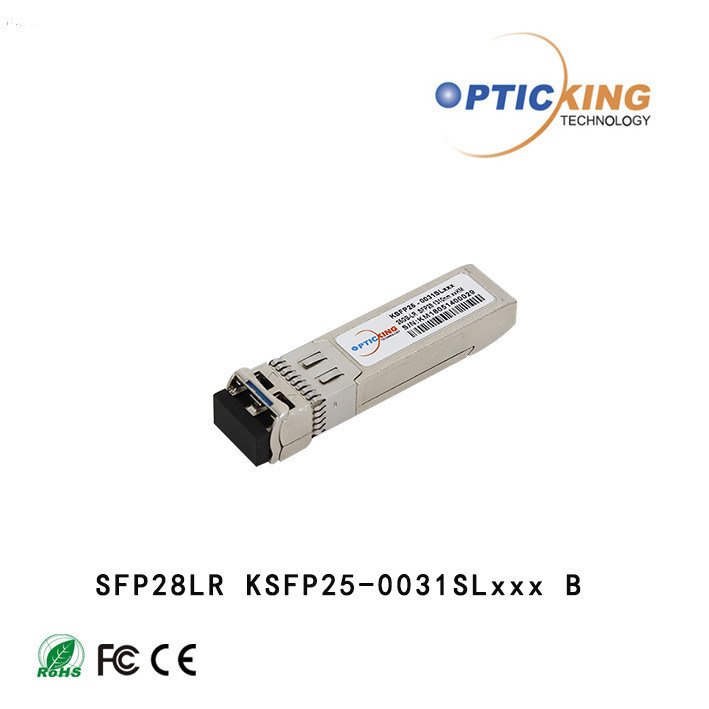

25G SFP28 Duplex LC 1310nm 10km Optical Transceiver LC Connector
Features
- Up to 25.78 Gb/s bi-directional data links
- Hot-pluggable SFP+ footprint
- Up to 10km on 9/125mm SMF
- Built-in digital diagnostic functions
- 1310nm DFB laser transmitter
- Duplex LC connector
- Metal enclosure, for lower EMI
- RoHS compliant
- 1.5W maximum power consumption with established link
- Specifications compliant with SFF 8472
- Single 3.3V power supply
- Case operating temperature
Commercial: 0°C to +70°C
Extended: -10°C to +80°C
Industrial: -40°C to +85°C
What is SFP28 transceiver?
SFP28 stands for Small Form-Factor Pluggable 28.It is the third generation of the SFP interconnect systems designed for 25G performance per the IEEE 802.3by specification (25GBASE-CR).The SFP28 is an enhanced version of SFP+, but is designed for 25G signal transmission.The SFP28 has the same common form factor as the SFP+, but supports 25Gbps electrical interfaces per channel
Applications
- 25G Ethernet
- eCPRI & CPRI
Specifications
| Product Number |
Wavelength |
Data rate |
Distance |
TX Power |
RX Sens |
LD |
PD |
DDM |
|
KSFP25-0031SL10X
|
1310nm |
25.78Gb/s |
10km |
-7~2 dBm |
<-10.5dBm |
DFB |
PIN |
YES |
Compatible
HW, HP, Cisco, H3C, Generic, ZTE, Arista, Dell, etc. ...
Mechanical Specifications
