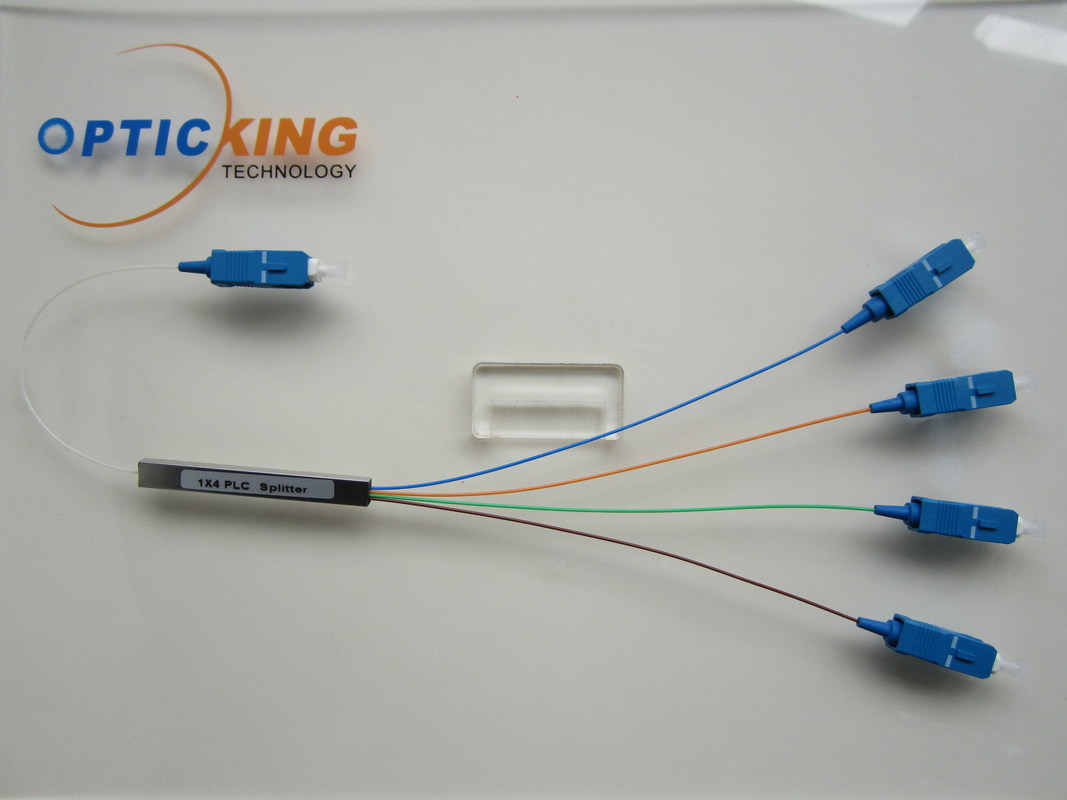

1xN 2xN optic fiber plc splitter mini sc plc splitter for FTTH
Fiber optic equipment 1260 to 1650nm ftth optic fiber plc splitter 1x4 1x8 1x16 1x32 1x64
Features
※ Low Insertion Loss
※ Low PDL
※ High Reliability and stability
※ Wide range of operating wavelengths
※ Passed GR-1209 & 1221-CORE Test
Application
※ Fiber optic equipments & systems
※ CATV networks
※ Data communications
※ Passive optical network
| Premium Grade |
| Parameter |
1x2 |
1x4 |
1x8 |
1x16 |
1x32 |
1x64 |
2x2 |
2x4 |
2x8 |
2x16 |
2x32 |
| Insert Loss(dB) |
3.7 |
7 |
10.3 |
13.4 |
16.8 |
20 |
4 |
7.5 |
10.8 |
14 |
17.3 |
| Uniformity(dB) |
0.5 |
0.5 |
0.8 |
1 |
1.5 |
1.8 |
0.8 |
1 |
1.4 |
1.5 |
2 |
| PDL(dB) |
0.2 |
0.2 |
0.2 |
0.2 |
0.2 |
0.3 |
0.2 |
0.2 |
0.2 |
0.3 |
0.3 |
| Standard Grade |
| Parameter(dB) |
1x2 |
1x4 |
1x8 |
1x16 |
1x32 |
1x64 |
2x2 |
2x4 |
2x8 |
2x16 |
2x32 |
| Insert Loss(dB) |
4 |
7.4 |
10.8 |
13.8 |
17.2 |
20.4 |
4.5 |
7.9 |
11.3 |
14.6 |
17.8 |
| Uniformity(dB) |
0.6 |
0.8 |
1 |
1.3 |
1.5 |
1.8 |
1.2 |
1.4 |
1.5 |
1.8 |
2.4 |
| PDL(dB) |
0.2 |
0.2 |
0.2 |
0.3 |
0.3 |
0.4 |
0.3 |
0.3 |
0.3 |
0.4 |
0.4 |
| Operating Wavelength(nm) |
1260~1650 |
| Package Dimension(LxWxH)(mm) |
Customized(Cassette-Type,19"Rack-Type,LGX-Type...) |
| Return Loss(dB) |
≥50 |
| Directivity(dB) |
≥55 |
| Fiber Type |
G.657A |
| Fiber Length |
Customized |
| Connector Type |
Customized |
| Operating Temperature(°C) |
-40°C ~ +85°C |
| Storage Temperature(°C) |
-40°C ~ +85°C |
Note:● Without Connector Loss
● the operating wavelength is guaranteed by design.The test results provide data for 1310and 1550nm.
