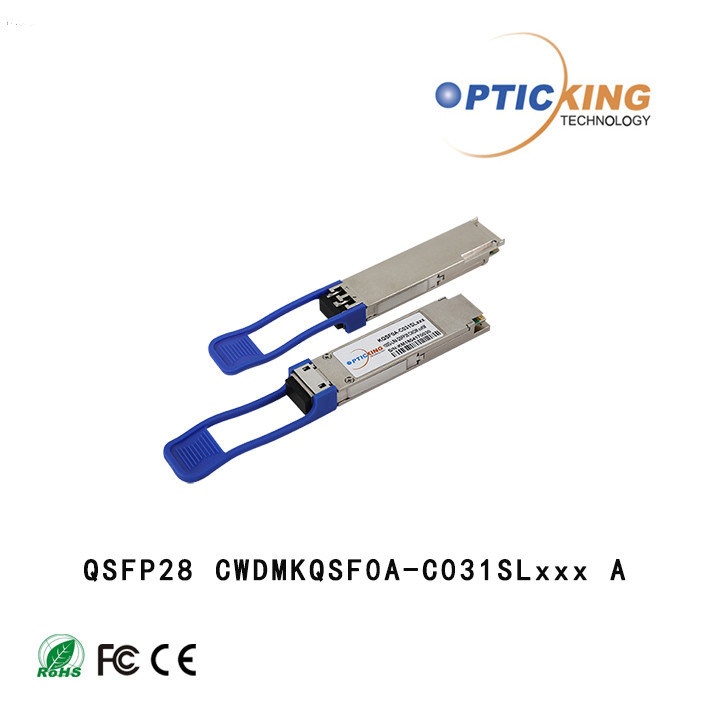

100G QSFP28 CWDM4 2Km LC Optical Module
The QSFP-100G-SM-SR Compatible QSFP28 Optical Transceiver Module is designed for use in 100GBASE Ethernet throughput up to 2km over single mode fiber (SMF) using four wavelengths of 1271nm, 1291nm, 1311nm and 1331nm via duplex LC connector. It provides high-density and low-power 100GBASE Ethernet solution for data centers, high-performance computing networks,enterprise core and distribution layer applications. It is fully compliant with the QSFP28 MSA and 100GBASE-CWDM4 and ITU-T G.694.2 standard.
Product Features
- Hot-pluggable QSFP28 form factor
- 4 channels full-duplex transceiver module
- Supports 103.125Gb/s aggregate bit rate
- 4 channels transmitter
- Internal CDR circuits on both receiver and transmitter channels
- Support CDR bypass
- Built-in digital diagnostic functions
- Operating case temperature range: 0 to 70°C
- Single 3.3V power supply
- RoHS-6 compliant (lead free)
Applications
- 100G Ethernet
- InfiniBand DDR
Ordering Information
| Product Number |
Wavelength |
Data rate |
Distance |
TX Power |
RX Sens |
LD |
PD |
DDM |
| KQSF0A0085MM01X(SR4) |
850nm |
100Gb/s |
100M |
-8.4~2.4dBm |
<-5.2dBm |
VCSEL |
PIN |
YES |
| KQSF0AL031SL10X(LR4) |
LAN WDM(note2) |
100Gb/s |
10KM |
-4.3~4.5dBm |
<-10.6dBm |
DFB |
PIN |
YES |
| KQSF0AL031SL10X(LR4) |
LAN WDM(note2) |
100Gb/s |
10KM |
-4.3~4.5dBm |
<-10.6dBm |
DFB |
PIN |
YES |
| KQSF0AC027SL00X(CWDM4) |
CWDM(note1) |
100Gb/s |
10KM |
-6.5~2.5dBm |
<-10.0dBm |
DFB |
PIN |
YES |
| KQSF0A0031SM00X(PSM4) |
1310nm |
100Gb/s |
2KM |
-4.3~4.5dBm |
<-10.6dBm |
DFB |
PIN |
YES |
